Concept of a fusion power plant
Fusionskraftwerk
virtual tour
Fusion devices
Textor

ITER, Cadarache
Proof of Concept, international test reactor under construction at Cadarache, France.

______________
ASDEX Upgrade, Garching
investigation of essential plasma properties and the load of the plasma chamber wall
virtual tour

______________
JET, Culham
actually biggest tokamak facility worlwide, JET is operated since 1983 and it was capable to generate for a short time a power of 17 MW corresponding to some 70% of the heating power.

______________
W7-X, Greifswald
it is to demonstrate that the Stellarator principle is suited as a power plant, start of operation in 2014
Assembly of W7-X

Experimental Fusion Facilities

Plasma
plasma discharge at ASDEX upgrade
JET Vessel

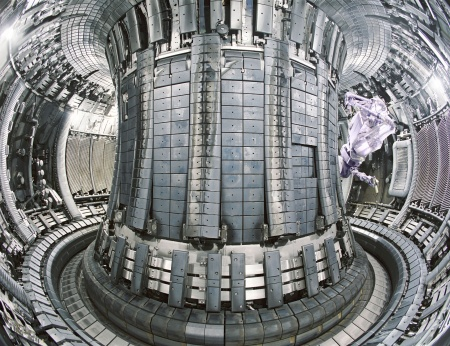

Vacuum vessel of JET
wndelstein 7x
construction of Wendelstein 7-x

A number of experimental fusion facilities are operated worldwide aimed at the generation of a database for the design of future fusion reactors in particular regarding plasma heating and –confinement as well as material development of plasma facing components. All important fusion devices are working on the tokamak-principle. The tokamak-principle is characterized by a torus-shaped plasma chamber which confines the plasma by three overlapping magnetic fields:

  • The toroidal magnetic field generated by the toroidal field coils
  • The poloidal magnetic field generated by the plasma current caused by a transformer (therefore a tokamak cannot be operated stationary but only in a pulsed mode), and
  • The vertical magnetic field generated by the vertical field coils.

The presently biggest German fusion facility ASDEX upgrade is being operated by the Max-Planck-Institute for Plasma Physics (IPP) according to the tokamak-principle since 1990.

Parallel to the tokamak which releases energy in long pulses the stellarator development is being pursued which allows a continuous plasma operation. Under the overall leadership of the Max-Planck-Institute for Plasma Physics (IPP) the stellarator facility Wendelstein 7-X is being constructed in Greifswald/Germany.
